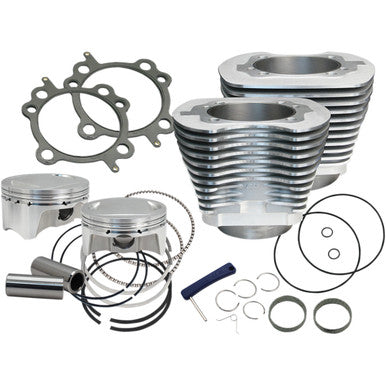

S&S Cycle #910-0650 - 4" Big Bore Bolt-In Sidewinder® Cylinder Kit - 110" - Silver

Inspired by our Pro Stock Drag Race engines, these updated big bore kit utilizes a Ductile Cast Iron liner wrapped in cast aluminum for optimum thermal conductivity and performance. Bolt-in kits do not require machining, rebalancing or engine removal, and include just about everything you’ll need to complete the installation. The biggest cylinder bore that can be installed in a stock crankcase without machining!
Features & Benefits
Low friction Ductile Cast Iron liner10.5:1 CompressionBolts in. No machining, balancing, or splitting the crankcases96" and 103" engines are boosted to 110"Complete kits include cylinders, pistons, gaskets, and instructionsAlthough not mandatory, we recommend adding an oil cooler to bikes ridden in warmer climates



Stroke
Bore
Cylinder Length
Piston Type
Dome Volume
83cc CNC Heads
85cc Stock Heads
89cc S&S Heads


4.375
4.00"
4.937"
Forged
.75 pop up
10.7:1
10.5:1
10.2:1



*Not compatible with S&S 79cc Super Stock® heads and 2014-'16 Twin-Cooled™ touring models. S&S does not recommend compression ratios higher than 10:1 for Tri Glide® or other three wheel models (including conversions) due to extra loads caused by the lugging nature of these bikes. Detonation and subsequent engine damage may result.

Fitment
