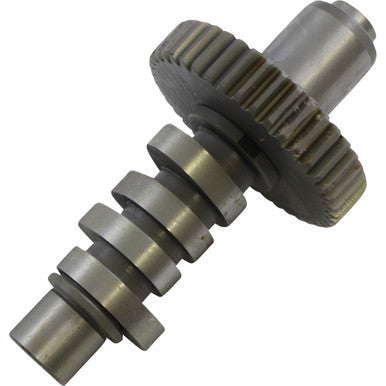

Andrews #212030 - Cam - J Grind - Shovelhead

Andrews #212030 - Cam - J Grind - Shovelhead

SKU:DS-199303

Regular price $229.95 USD
Regular price Sale price $229.95 USD
Sale Sold out

Out of stock

Cam - J Grind - Shovelhead

Features

  • More mid-range and top-end power for street and drag bikes. These cams work with solid or hydraulic lifters, and the idle remains unaffected up to 6,000 rpm with stock valve springs
  • Cams are computer designed and precision ground from alloy steel billets on Landis CNC cam grinders
  • Add more power throughout rpm range and maintain a smooth idle
  • For mild street applications
  • Bolt in with no head work
  • Made in the USA
  • Must check coil bind, valve to valve clearance, and valve to piston clearance.
  • On late '77 and later engines, the pitch diameter on the camshaft, pinion gear, and the breather valve gear was changed. These components are not interchangeable with earlier-style components unless replaced in set only. Late '77 and later gear sets are identified by a circular groove machined in the outer face of the cam gear.

Specs

Application Exhaust
Exhaust Close 21°
Exhaust Duration 242°
Intake Lift at TDC 0.154"
Riding Style Street
Units Each
Intake Open 21°
Grind J
Exhaust Lift at TDC 0.154"
Exhaust Lift 0.405"
Exhaust Open 41°
Intake Close 41°
Intake Duration 242°
Intake Lift 0.405"
Product Name Cam
