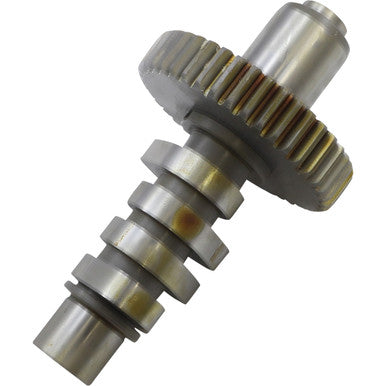

Andrews #212140 - Low-Compression Cam - #1 Grind - Shovelhead
Andrews #212140 - Low-Compression Cam - #1 Grind - Shovelhead
SKU:DS-199282
Regular price
$229.95 USD
Regular price
Sale price
$229.95 USD
Unit price
/
per
Out of stock
Couldn't load pickup availability
For '70 - Early '77 Shovelhead.
Features
- Designed with a combination of shorter durations and higher lifts to offer the advantages of a broad torque output through the entire rpm range
- Designed for hydraulics, but could be run with solids
- Grind #1 is the low-compression version of an "A" grind cam for 74" and 80" models
- Made in the USA
- On late '77 and later engines, the pitch diameter on the camshaft, pinion gear and breather valve gear was changed. These components are not interchangeable with earlier style components unless replaced in sets only. Late '77 and later gear sets are identified by a circular groove machined in the outer face of the cam gear.
Specs
| Exhaust Close | 16° |
| Product Name | Cam |
| Intake Duration | 232° |
| Intake Lift at TDC | 0.136" |
| Exhaust Duration | 232° |
| Exhaust Lift at TDC | 0.136" |
| Units | Each |
| Application | Exhaust |
| Exhaust Lift | Shovel: 0.427" Pan: 0.450" |
| Exhaust Open | 36° |
| Intake Lift | Shovel: 0.427" Pan: 0.450" |
| Riding Style | Street |
| Grind | #1 |
| Intake Close | 36° |
| Intake Open | 16° |
