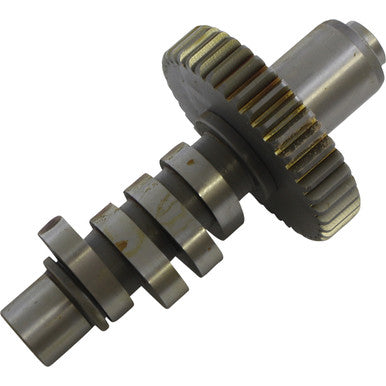

Andrews #212320 - Cam - AB Grind - Shovelhead

Andrews #212320 - Cam - AB Grind - Shovelhead

SKU:DS-199347

Regular price $229.95 USD
Regular price Sale price $229.95 USD
Sale Sold out

Out of stock

Bolt-in street cam has an "A" intake and a long duration exhaust for cooler running and high-end power.

Suitable for hydraulic lifters.

Features

  • More mid-range and top-end power for street and drag bikes. These cams work with solid or hydraulic lifters, and the idle remains unaffected up to 6,000 rpm with stock valve springs
  • Cams are computer designed and precision ground from alloy steel billets on Landis CNC cam grinders
  • Made in the USA
  • Must check coil bind, valve to valve clearance, and valve to piston clearance.
  • On late '77 and later engines, the pitch diameter on the camshaft, pinion gear, and the breather valve gear was changed. These components are not interchangeable with earlier-style components unless replaced in set only. Late '77 and later gear sets are identified by a circular groove machined in the outer face of the cam gear.

Specs

Exhaust Lift 0.450"
Grind AB
Application Exhaust
Intake Close 50°
Exhaust Lift at TDC Shovel: 0.142" Pan: 0.150"
Intake Open 21°
Exhaust Duration 256°
Type Gear
Exhaust Open 43°
Intake Lift at TDC Shovel: 0.156" Pan: 0.164"
Intake Duration 244°
Exhaust Close 26°
Intake Lift 0.450"
Product Name Cam
Riding Style Street
Units Each
