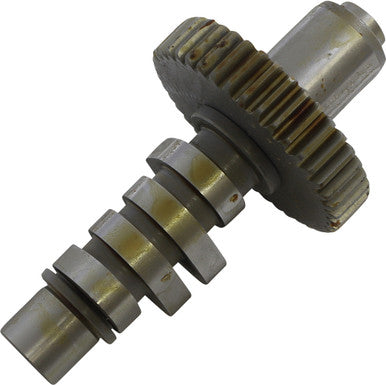

Andrews #212350 - Low-Compression Cam - #2 Grind - Shovelhead

Andrews #212350 - Low-Compression Cam - #2 Grind - Shovelhead

SKU:DS-199326

Regular price $0.00 USD
Regular price Sale price $0.00 USD
Sale Sold out

Out of stock

For Late '77 - '84 Shovelhead.

Features

  • Designed with a combination of shorter durations and higher lifts to offer the advantages of a broad torque output through the entire rpm range
  • Designed for hydraulics, but could be run with solids
  • Grind #2 offers more power through the rpm range for engines with low-compression pistons; the low-compression sister to a "B" grind cam
  • Made in the USA
  • On late '77 and later engines, the pitch diameter on the camshaft, pinion gear and breather valve gear was changed. These components are not interchangeable with earlier style components unless replaced in sets only. Late '77 and later gear sets are identified by a circular groove machined in the outer face of the cam gear.

Specs

Application Exhaust
Intake Open 15°
Intake Duration 230°
Intake Lift Shovel: 0.490" Pan: 0.512
Product Name Cam
Riding Style Street
Intake Lift at TDC Shovel: 0.133" Pan: 0.133"
Exhaust Open 35°
Units Each
Exhaust Duration 230°
Exhaust Close 15°
Exhaust Lift at TDC Shovel: 0.133" Pan: 0.133"
Grind #2
Intake Close 35°
Exhaust Lift Shovel: 0.490" Pan: 0.512"
