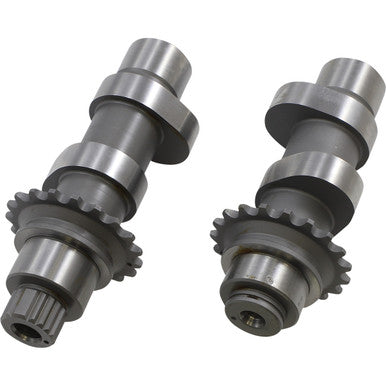

Andrews #216355 - Cam Set - 55H - Chain Drive - Twin Cam
Andrews #216355 - Cam Set - 55H - Chain Drive - Twin Cam
SKU:0925-0118
Regular price
$0.00 USD
Regular price
Sale price
$0.00 USD
Unit price
/
per
Out of stock
Couldn't load pickup availability
Cams for maximum torque and horsepower at higher rpm ranges (2600-6000+ rpm).
Designed for engines with 9.5:1 compression ratio or higher with 88"-95" motors.
Coil bind must be checked, but stock tappets can be used.
Features
- Manufactured with the help of a computer with cam design capabilities
- Made from alloy steel billets and heat-treated processes are utilized
- Made in the USA
- Installer must check coil bind, valve-to-valve clearance and valve-to-piston clearance.
- '00-'06 model cams use a splined cam drive sprocket, for '99 a splined cam drive sprocket is required.
Specs
| Exhaust Duration | 252° |
| Exhaust Lobe Centerline | 106° |
| Exhaust Open | 52° |
| Exhaust Close | 20° |
| Product Name | Cam Set |
| Riding Style | Street |
| Intake Lobe Centerline | 102° |
| Type | Chain Drive |
| Intake Close | 46° |
| Intake Lift at TDC | 0.197" |
| Units | Pair |
| Exhaust Lift at TDC | 0.181" |
| Grind | 55 Series |
| Application | Intake |
| Exhaust Lift | 0.550" |
| Intake Duration | 248° |
| Intake Open | 22° |
| Intake Lift | 0.550" |
