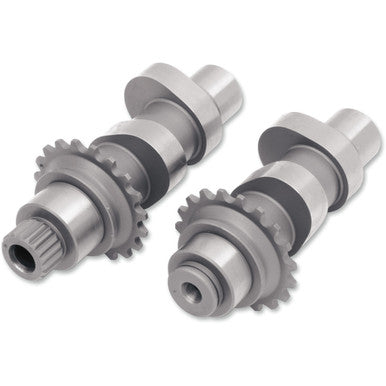

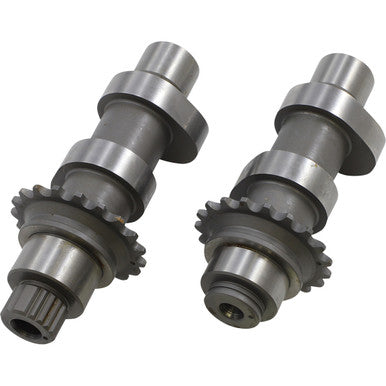

Andrews #216812 - Conversion Camshaft

Andrews #216812 - Conversion Camshaft

SKU:0925-0139

Regular price $431.95 USD
Regular price Sale price $431.95 USD
Sale Sold out

Out of stock

Bolt-in cams with the same output as the stock cams.

Slight power increase when compared to stock.

No returning of the stock system is necessary.

Can be used with stock valve springs and tappets.

Features

  • Allows upgrade of the '99-'06 Twin Cam (except '06 Dyna Glide) to the newer roller-style cam chains and replaces the spring tension cam chain adjusters with the later-style hydraulic adjusters for longer life
  • Cam grinds listed are designed to be used with stock lifters; they require the installation of a '07-'17 cam plate, oil pump, cam sprockets and chains, and both hydraulic chain adjusters (these parts are not included and must be purchased separately)
  • A list of required components is supplied with each set of cams
  • Performance should be similar to earlier bikes with the same cam grinds
  • Made in the USA
  • '99-'06 Twin Cam motors (except '06 Dyna Glide) cannot use the '07-'17 cams, as the bearing journal on the earlier motors is .875" in diameter and the '07-'17 cams are 1.000" in diameter. The "N" series of cams feature the .875" bearing journal, yet still accept the new style cam support plate.
  • '99-'01 model motors require Andrews rear cam sprocket . '02-'06 models must use the stock rear cam sprocket, OEM #25728-06.
  • Installer must check coil bind, valve-to-valve clearance and valve-to-piston clearance.

Specs

Application Intake
Intake Lobe Centerline 106°
Type Chain Conversion
Exhaust Duration 222°
Exhaust Open 40°
Grind 12 Series
Intake Lift 0.489"
Product Name Cam Kit
Exhaust Close
Exhaust Lobe Centerline 109°
Intake Close 34°
Intake Open
Model N Series
Riding Style Street
Units Pair
Exhaust Lift 0.489"
Exhaust Lift at TDC 0.095"
Intake Duration 216°
Intake Lift at TDC 0.091"
