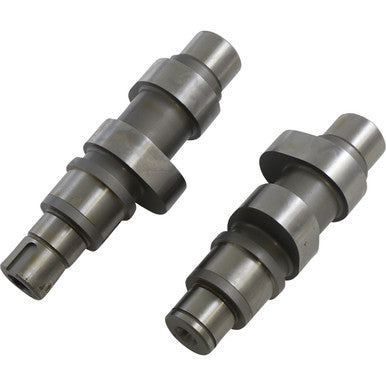

Andrews #288155G - Cam Set - 55G - Gear Drive - Twin Cam
Andrews #288155G - Cam Set - 55G - Gear Drive - Twin Cam
SKU:DS199249
Regular price
$473.95 USD
Regular price
Sale price
$473.95 USD
Unit price
/
per
Out of stock
Couldn't load pickup availability
Cams for maximum torque and horsepower at 2600-6000+ rpm.
Designed for 88'-95" engines with 9.5:1 compression ratio or higher.
Coil bind must be checked, but stock tappets can be used.
Not for '06 Dyna.
Features
- Manufactured with the help of a computer with cam design capabilities
- Made from alloy steel billets and heat-treated processes are utilized
- Made in the USA
- Four-gear set required for installation.
- Installer must check coil bind, valve to valve clearance and valve to piston clearance.
Specs
| Grind | 55 Series |
| Product Name | Cam Set |
| Application | Exhaust |
| Exhaust Lobe Centerline | 106° |
| Exhaust Duration | 252° |
| Exhaust Lift at TDC | 0.181" |
| Exhaust Open | 52° |
| Intake Duration | 248° |
| Intake Lift | 0.550" |
| Type | Gear Drive |
| Intake Close | 46° |
| Intake Lift at TDC | 0.197" |
| Intake Lobe Centerline | 102° |
| Units | Pair |
| Exhaust Close | 20° |
| Riding Style | Street |
| Exhaust Lift | 0.550" |
| Intake Open | 22° |
