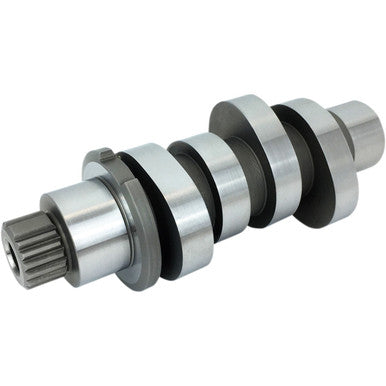

Feuling Parts #1346 - Cam - 521 Series - Chain Drive - M8
Feuling Parts #1346 - Cam - 521 Series - Chain Drive - M8
SKU:0925-1210
Regular price
$279.95 USD
Regular price
Sale price
$279.95 USD
Unit price
/
per
Out of stock
Couldn't load pickup availability
Not for '23-'24 models with 121" VVT motors.
Features
- Aggressive pulling power with a “nasty” sound, the Reaper 521 grind will shine in 114” and larger cubic inch engines with added compression ratio
- Ported cylinder heads are not required, but will complement the cam and add even more pulling power throughout the range
- Stock throttle body produces an excellent powerband; use of a high-flow throttle body may increase peak power numbers
- A high-flow exhaust system and air cleaner is highly recommended for optimal performance
- Rpm range 2250-6250
- Made in the USA
- Cam specs measured in the engine on the lifter @ 0.050 using a 1.61 rocker arm ratio.
- Feuling recommends matching 521 cam with Race Series oiling system.
- Requires high lift springs.
- Heavy-duty one-piece pushrods are also highly recommended.
Specs
| Intake Lift | 0.518" |
| Model | Reaper |
| Product Name | Cam |
| Application | Exhaust |
| Intake Duration | 231° |
| Exhaust Close | 11.5° |
| Exhaust Lift at TDC | 0.125" |
| Exhaust Lobe Centerline | 110° |
| Grind | 521 Series |
| Intake Lobe Centerline | 98.5° |
| Riding Style | Street |
| Exhaust Lift | 0.521" |
| Intake Lift at TDC | 0.162" |
| Intake Close | 34° |
| Type | Chain |
| Exhaust Duration | 243° |
| Exhaust Open | 51.5° |
| Intake Open | 17° |
| Units | Each |
