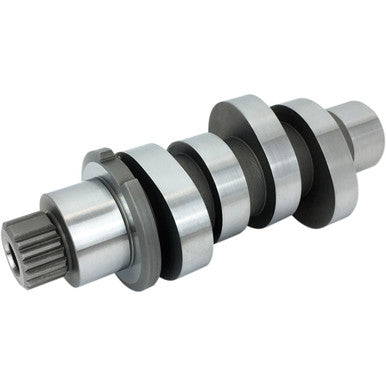

Feuling Parts #1348 - Cam - 592 Series - Chain Drive - M8
Feuling Parts #1348 - Cam - 592 Series - Chain Drive - M8
SKU:0925-1265
Regular price
$299.95 USD
Regular price
Sale price
$299.95 USD
Unit price
/
per
Out of stock
Couldn't load pickup availability
Not for '23-'24 models with 121" VVT motors.
Features
- Get serious with bore size, ported cylinder heads and throttle body
- Rpm range 2,750-6350+
- Overlap: 36
- Made in the USA
- High flow air cleaner and triple stepped exhaust pipe highly recommended
- Feuling® recommends matching this cam with Feuling® Race Series oiling system.
- High lift/high load valve springs and heavy duty pushrods are required.
- Clearance must be checked when installing this cam.
- Screamin' Eagle camplates #25400419 have been found to have clearance issues on high lift camshafts.
Specs
| Application | Exhaust |
| Exhaust Lift | 0.592" |
| Exhaust Open | 68° |
| Model | Reaper |
| Exhaust Lobe Centerline | 116° |
| Intake Lift | 0.578" |
| Units | Each |
| Intake Close | 34° |
| Intake Open | 20° |
| Type | Chain |
| Exhaust Lift at TDC | 0.146" |
| Product Name | Camshaft |
| Exhaust Close | 16° |
| Exhaust Duration | 264° |
| Intake Duration | 234° |
| Intake Lift at TDC | 0.182" |
| Grind | 592 Series |
| Intake Lobe Centerline | 97° |
| Riding Style | Street |
