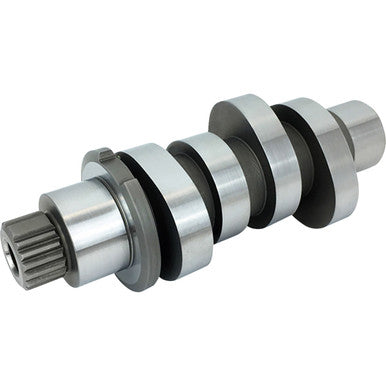

Feuling Parts #1352 - Reaper® Camshaft - Chain Drive - 618 Series - M8
Feuling Parts #1352 - Reaper® Camshaft - Chain Drive - 618 Series - M8
SKU:0925-1608
Regular price
$359.95 USD
Regular price
Sale price
$359.95 USD
Unit price
/
per
Out of stock
Couldn't load pickup availability
Not for M8 VVT models.
Overlap: 39
Lobe Separation: 107
Features
- Race series
- RPM range 3100-6650
- Aggressive camshaft requiring high lift and higher load valve springs, performance pushrods and lifters.
- Requires large bore size, ported cylinder heads, ported intake manifold, high flow valves and large throttle body.
- High flow air cleaner and triple stepped exhaust pipe highly recommended.
- Feuling recommends matching this cam with Race Series oiling system.
- Clearances must be checked when installing.
- Feuling does not recommend tuning beyond stock emissions standards.
Specs
| Exhaust Open | 65° |
| Application | Exhaust |
| Exhaust Lift | 0.618" |
| Intake Lift | 0.608" |
| Exhaust Lift at TDC | 0.170" |
| Exhaust Lobe Centerline | 113° |
| Intake Close | 42° |
| Intake Open | 20° |
| Model | Reaper |
| Riding Style | Street |
| Units | Each |
| Grind | 618 Series |
| Intake Lift at TDC | 0.195" |
| Intake Duration | 242° |
| Product Name | Camshaft |
| Exhaust Close | 19° |
| Exhaust Duration | 264° |
| Intake Lobe Centerline | 101° |
| Type | Chain Drive |
