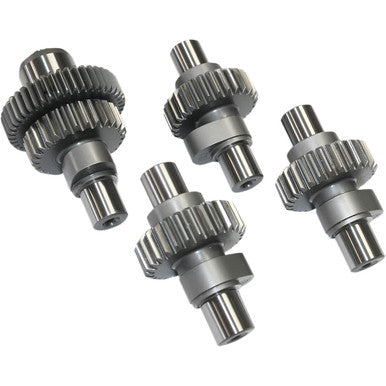

Feuling Parts #1377 - Reaper Camshaft - 580 Series - Buell | XL (except RH Sportster)
Feuling Parts #1377 - Reaper Camshaft - 580 Series - Buell | XL (except RH Sportster)
SKU:0925-0894
Regular price
$399.95 USD
Regular price
Sale price
$399.95 USD
Unit price
/
per
Out of stock
Couldn't load pickup availability
Reaper Camshaft - 580 Series - Buell | XL (except RH Sportster)
Features
- Designed for riders who want more horsepower and the powerband higher in the RPM range
- Higher compression also recommended, along with performance pushrods and lifters
- High-flow intake and performance exhaust required
- Rpm range: 2400-6900+
- Overlap: 42
- Made in the USA
- Requires high-lift valve springs see Fueling Beehive® Econo, Endurance or High Load valve springs.
- Most cam compartments will need to be machined to make clearance for 580 High Lift cams.
- Does not fit XR models
Specs
| Exhaust Open | 67° |
| Exhaust Close | 21° |
| Intake Close | 57° |
| Intake Lift at TDC | 0.191" |
| Exhaust Lobe Centerline | 113° |
| Model | Reaper |
| Application | Intake |
| Intake Lift | 0.580" |
| Product Name | Camshaft |
| Units | Set |
| Exhaust Duration | 268° |
| Exhaust Lift at TDC | 0.180" |
| Intake Lobe Centerline | 108° |
| Exhaust Lift | 0.580" |
| Grind | 580 Series |
| Intake Duration | 258° |
| Riding Style | Street |
| Type | Gear |
| Intake Open | 21° |
