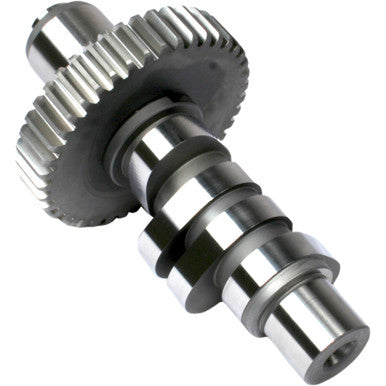

Feuling Parts #1391 - Camshaft - Reaper® EVO 543 Series - Evolution Big Twin '84-'99
Feuling Parts #1391 - Camshaft - Reaper® EVO 543 Series - Evolution Big Twin '84-'99
SKU:0925-1038
Regular price
$239.95 USD
Regular price
Sale price
$239.95 USD
Unit price
/
per
Out of stock
Couldn't load pickup availability
Requires performance valve springs.
Performance lifters recommended but not required.
Will work with factory pushrods on engines with factory stack up; if deck height, cylinders or rocker boxes have been modified from stock then adjustable pushrods are required.
Increased compression, cylinder head work and performance exhaust recommended but not required for bottom end performance.
2200-5950 rpm power range.
Features
- Offers more power than the 525 cams without sacrificing low end torque
- Extremely smooth cam lobe layout maintains quiet valve train and produces the smoothest cruise power band available
- Excellent bolt-in camshaft for stock to mid 96" and 103" engines and works well in 88" and 96" engines
- Cam is easy starting, increases throttle response and fuel mileage
- Responds well to increased compression ratio, performance exhaust and a high-flow air cleaner
- 1900-6000 RPM power range
- Performance valve springs are required on '99-'04 engines and performance pushrods and lifters are recommended but not required.
- Made in the USA
Specs
| Application | Intake |
| Type | Gear |
| Intake Lift at TDC | 0.160" |
| Riding Style | Street |
| Units | Each |
| Exhaust Close | 12° |
| Intake Close | 43° |
| Intake Duration | 238° |
| Intake Open | 15° |
| Exhaust Lobe Centerline | 112° |
| Grind | 543 Series |
| Exhaust Duration | 248° |
| Exhaust Lift | 0.553" |
| Intake Lobe Centerline | 104° |
| Model | Reaper |
| Exhaust Lift at TDC | 0.140" |
| Exhaust Open | 56° |
| Intake Lift | 0.543" |
| Product Name | Camshaft |
