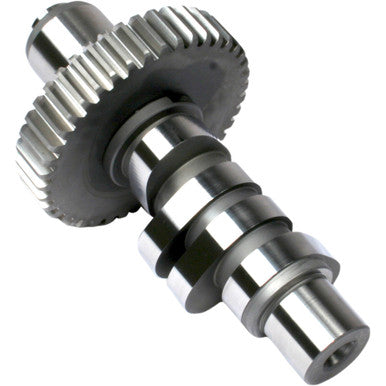

Feuling Parts #1393 - Cam - EVO 594 Series - Evolution Big Twin '84-'99

Feuling Parts #1393 - Cam - EVO 594 Series - Evolution Big Twin '84-'99

SKU:0925-1039

Regular price $239.95 USD
Regular price Sale price $239.95 USD
Sale Sold out

Out of stock

Requires performance valve springs, performance lifters, adjustable pushrods, increased compresiion, cyllinder head work, performance exhaust and intake air cleaner.

Rpm power range 2500-6400.

Features

  • Fierce performing camshaft for an array of engine sizes, large displacement 103", 110" and 124" engines looking for a superior torque band with excellent horsepower gains in heavy bikes (2200-6250 rpm)
  • Smaller high-revving displacement 95" style engines in lighter bikes looking to twist the throttle and tap into some horsepower (2500-6800 RPM)
  • Large displacements respond well to increased compression ratio and smaller displacements will require it
  • 594 cams require high-performance valve springs, pushrods, lifters, carburetor or throttle body work, performance exhaust, intake and clutch
  • Made in the USA

Specs

Intake Lift at TDC 0.190"
Application Exhaust
Intake Duration 255°
Intake Lift 0.594"
Exhaust Open 64°
Intake Close 56°
Intake Lobe Centerline 108.5°
Model Reaper
Riding Style Street
Units Each
Product Name Camshaft
Exhaust Close 16°
Exhaust Lift at TDC 0.167"
Exhaust Lobe Centerline 114°
Intake Open 19°
Type Gear
Exhaust Lift 0.604"
Grind 594 Series
Exhaust Duration 260°
