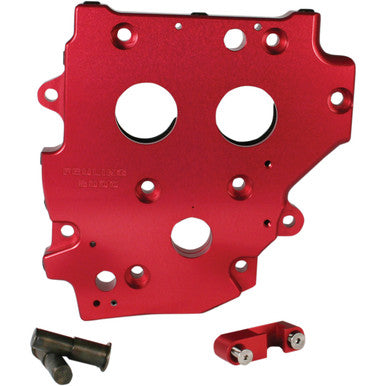

Feuling Parts #8010 - High Flow Camplate - Chain Drive - Twin Cam

Camplates for '99-'06 Twin Cam (except 06 Dyna) have tighter cam bearing bore tolerances for improved press fit.

Requires the use of '99-'06 style Feuling HP+ or Race Series oil pump.

Includes tensioner pins and guide hardware.

Camplate is designed to use factory tensioner system with original '99-'06 Twin Cam style camshafts.

Not for '06 Dyna.

Features

• Camplate matches the oil portholes throughout the camplate to the port holes in the engine case increasing engine oil flow throughout the engine
• Camplates are pressure tested and pressure relief valve is seated, sealed and set to pop off at 55-60 psi
• Increase engine oil flow and volume by enlarging the oil pump reservoirs and critical oil passages
• 25°-35° cooler engine temperatures and 20°-30° cooler oil temperatures
• When matched with the Feuling® Race Series oil pump rear wheel power gains of 3 horsepower and 4ft/lbs of torque can be achieved
• Added cam journal oil groove for cold start up protection and increased cam journal lubrication
• Oil pressure feed holes to front and back of cam journals to prevent excessive thrusting wear
• Bearing and retainer plate hardware is included
• Made in the USA
• For use only with Feuling® oil pumps.
