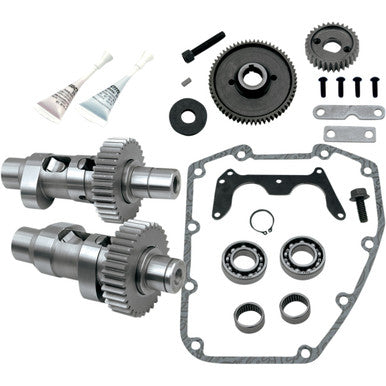

S&S Cycle #106-4840 - Camshaft - Easy Start - 640 Gear Drive - Twin Cam '99-'06 (except '06 Dyna)

S&S Cycle #106-4840 - Camshaft - Easy Start - 640 Gear Drive - Twin Cam '99-'06 (except '06 Dyna)

SKU:0925-0747

Regular price $1,049.95 USD
Regular price Sale price $1,049.95 USD
Sale Sold out

Out of stock

Includes 4-gear set.

Due to the inherent characterics of gear drives, there may be more valve train noise.

Features

  • Allows for easy start by initially reducing crank compression, but once the engine starts and rpm increases, the compression release lobe is centrifugally retracted and the engine runs normally, with full compression, and without any loss in performance
  • Intended for 95"/96"/103" and 110" engines with compression ratios between 10.5:1 and 11.5:1; strongest 3000 rpm - 6000 rpm range
  • Made in the USA
  • Installer must check coil bind, valve-to-valve clearance and valve-to-piston clearance.
  • Not for models with OEM compression releases.
  • High-lift springs and adjustable pushrods required.

Specs

Exhaust Duration 270°
Exhaust Lift at TDC 0.214"
Exhaust Open 65°
Intake Lobe Centerline 107.5°
Exhaust Lift 0.640"
Exhaust Lobe Centerline 110°
Intake Lift 0.640"
Riding Style Street
Type Gear
Application Exhaust
Exhaust Close 25°
Grind 640 Series
Intake Close 60°
Intake Duration 265°
Intake Lift at TDC 0.228"
Product Name Camshaft Kit
Units Kit
Intake Open 25°
Model Easy Start
