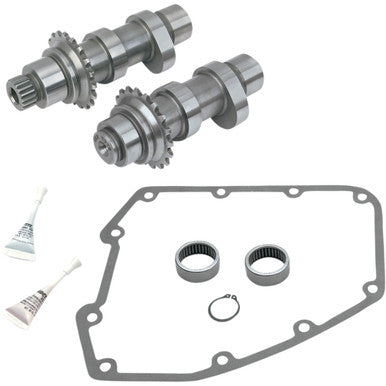

S&S Cycle #106-4858 - Camshaft Kit - 551C Chain Drive - Twin Cam | Dyna
S&S Cycle #106-4858 - Camshaft Kit - 551C Chain Drive - Twin Cam | Dyna
SKU:0925-0743
Regular price
$409.95 USD
Regular price
Sale price
$409.95 USD
Unit price
/
per
Out of stock
Couldn't load pickup availability
Can be used with stock pushrods, springs, and lifters.
Features
- Designed for engines with 96 to 106 CID and 9:1 to 9:9 compression, this is a bolt-in cam set for stock or mildly modified touring bikes
- More power across the rpm range, with improved low and midrange torque, strongest from 1,000-4,000 rpm
- Cams for '06 Dyna and '07-'17 Twin Cam are for use with models with hydraulic tensioner chain drive system
- Made in the USA
- Not recommended for compression ratios of 10:1 or greater.
- Installer must check coil bind, valve to valve clearance and valve to piston clearance.
Specs
| Intake Lift | 0.550" |
| Intake Close | 19° |
| Product Name | Camshaft Kit |
| Type | Chain |
| Exhaust Lift | 0.550" |
| Units | Kit |
| Exhaust Close | 17° |
| Exhaust Lift at TDC | 0.170" |
| Intake Duration | 216° |
| Application | Exhaust |
| Exhaust Duration | 238° |
| Intake Open | 17° |
| Riding Style | Street |
| Exhaust Open | 41° |
| Intake Lobe Centerline | 91° |
| Exhaust Lobe Centerline | 102° |
| Grind | 551 Series |
| Intake Lift at TDC | 0.178" |
