S&S Cycle #106-5243 - Camshaft Kit - Easy Start - 570 Gear Drive - Twin Cam '99-'06 (except '06 Dyna)

S&S Cycle #106-5243 - Camshaft Kit - Easy Start - 570 Gear Drive - Twin Cam '99-'06 (except '06 Dyna)

SKU:0925-0520

Regular price $0.00 USD
Regular price Sale price $0.00 USD
Sale Sold out

Out of stock

Includes 4-gear set.

Due to the inherent characterics of gear drives, there may be more valve train noise.

Features

  • Allows for easy start by initially reducing crank compression, but once the engine starts and rpm increases, the compression release lobe is centrifugally retracted and the engine runs normally, with full compression, and without any loss in performance
  • Designed for 88"/95"/103" engines with compression ratios between 9.0:1 and 10.0:1
  • Power increase across entire power band from 3200 rpm - 5700 rpm
  • Bolt-in

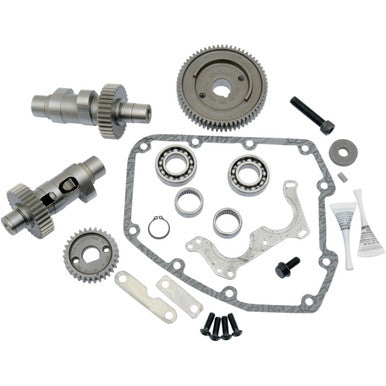

  • Includes camshafts, gearcover gasket, bearings, retaining ring, o-ring, threat lock and instructions
  • Made in the USA
  • Installer must check coil bind, valve-to-valve clearance and valve-to-piston clearance.
  • Not for models with OEM compression releases.

Specs

Exhaust Close 20°
Exhaust Duration 250°
Intake Open 20°
Riding Style Street
Application Exhaust
Intake Lift at TDC 0.187"
Units Kit
Intake Duration 240°
Model Easy Start
Exhaust Lift 0.570"
Exhaust Lobe Centerline 107.5°
Grind 570 Series
Intake Lobe Centerline 100°
Type Gear
Exhaust Open 55°
Intake Lift 0.570"
Product Name Camshaft Kit
Exhaust Lift at TDC 0.179"
Intake Close 40°
