S&S Cycle #106-5293 - Camshaft Kit - Easy Start - 551 Chain Drive - Big Twin '99-'06
S&S Cycle #106-5293 - Camshaft Kit - Easy Start - 551 Chain Drive - Big Twin '99-'06
SKU:0925-0521
Regular price
$529.95 USD
Regular price
Sale price
$529.95 USD
Unit price
/
per
Out of stock
Couldn't load pickup availability
Camshaft Kit - Easy Start - 551 Chain Drive - Big Twin '99-'06
Features
- Allows for easy start by initially reducing crank compression, but once the engine starts and rpm increases, the compression release lobe is centrifugally retracted and the engine runs normally, with full compression, and without any loss in performance
- Optimized for 88"/96"/103" to 106" Touring bike with slip-on mufflers and 9.0:1 to 9.0:9 compression with stock starter
- Bolt-in for stock or mildly modified Touring models
- Greatly improves low-end and midrange torque
- Strongest from idle to 4000 rpm

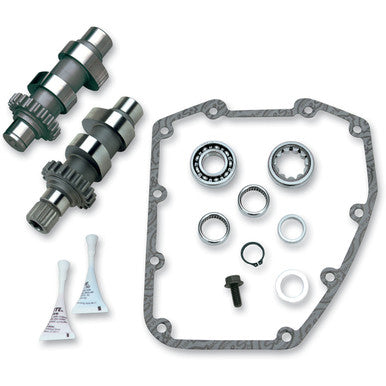

- Includes camshafts, gearcover gasket, bearings, retaining ring, o-ring, threat lock and instructions
- Made in the USA
- Not recommended for compression ratios of 10.0:1 or greater.
- Installer must check coil bind, valve-to-valve clearance and valve-to-piston clearance.
- Not for models with OEM compression releases.
- Can be used with stock pushrods, lifters, and springs (unless noted).
Specs
| Application | Intake |
| Exhaust Duration | 237° |
| Exhaust Lift | 0.550" |
| Intake Lift at TDC | 0.178" |
| Intake Open | 17° |
| Exhaust Open | 41° |
| Type | Chain |
| Exhaust Lift at TDC | 0.170" |
| Grind | 551 Series |
| Model | Easy Start |
| Product Name | Camchest Kit |
| Exhaust Close | 17° |
| Intake Close | 19° |
| Riding Style | Street |
| Intake Duration | 215° |
| Intake Lobe Centerline | 91° |
| Units | Kit |
| Exhaust Lobe Centerline | 102° |
| Intake Lift | 0.550" |
