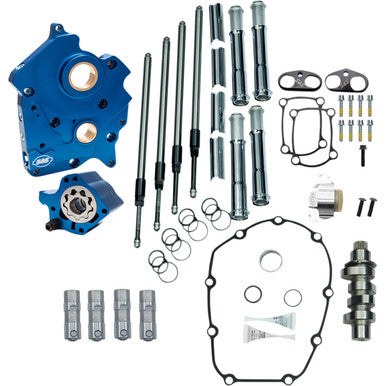

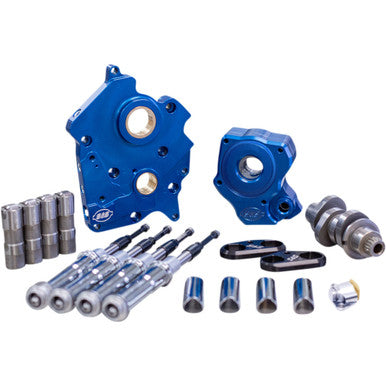

S&S Cycle #310-1000B - Cam Chest Kit with Plate - Chain Drive - Water Cooled - 475 Cam - Chrome Pushrods - M8

S&S Cycle #310-1000B - Cam Chest Kit with Plate - Chain Drive - Water Cooled - 475 Cam - Chrome Pushrods - M8

0925-1354

$0.00 USD
$0.00 USD
Sale Sold out

Out of stock

475 is a bolt-in 100 horsepower cam.

Kit Includes:

• Cam Chain Tensioner

• 475C Camshaft Kit

• Quickee Pushrod Kit with Chrome Covers

• Tappet Cuffs Lifter Guide

• Oil Pump with Cam Plate

• Hydraulic Tappet Set

Features

  • Oil Pump/Cam Plate:
  • Precision machined from billet aluminum
  • Blue anodized finish
  • Passage plugs removable for servicing
  • Independant scavenge sections for flywheel cavity and cam chest
  • Debris screens in both pickups
  • Magnet in cam chest to help stop debris from entering oil pump
  • Increased flow capacity on both feed and scavenge side
  • Adjustable pressure relief vale is adjustable with unit installed in engine
  • Includes S&S high performance cam chain tensioner
  • Pushrods:
  • Quickee pushrods
  • Tappets:
  • S&S precision tappets
  • Tappet Cuffs:
  • Hard anodized black coating
  • Billet aluminum construction
  • Stronger than stock material eliminates distortion
  • Improves tappet stability in high lift and high rpm situations
  • Cam:
  • Includes all gaskets, bearings and hardware for installation
  • Made in the USA

Specs

Exhaust Lift at TDC 0.208" Front, 0.170" Rear
Features Chrome Pushrod Tubes
Intake Duration 213.5° Front, 213.5° Rear
Intake Lift 0.475"
Exhaust Duration 263.9° Front, 252.5° Rear
Exhaust Lift 0.475"
Exhaust Lobe Centerline 103.5° Front, 106.0° Rear
Grind 475C
Units Kit
Exhaust Open 55.5° Front, 52.2° Rear
Intake Lobe Centerline 100.5° Front, 104.5° Rear
Product Name Camchest Kit
Riding Style Street
Intake Open 6.2° Front, 2.2° Rear
Intake Close 27.2° Front, 31.2° Rear
Application Water Cooled
Intake Lift at TDC 0.107" Front, 0.093" Rear
Exhaust Close 28.5° Front, 20.2° Rear
Model 475 HP
Type Chain
