S&S Cycle #310-1012C - Cam Chest Kit - Oil Cooled - Chain Drive - 475 Cam - Black Pushrod Tubes - M8

S&S Cycle #310-1012C - Cam Chest Kit - Oil Cooled - Chain Drive - 475 Cam - Black Pushrod Tubes - M8

0925-1665

$1,721.95 USD
$1,721.95 USD
Sale Sold out

Out of stock

475 is a bolt-in 100 horsepower cam.

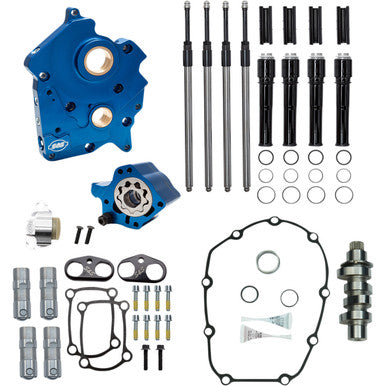

Kit Includes:

• Cam Chain Tensioner

• Oil Pump Screw Kit

• 475C Camshaft

• Cam Chain Installation Kit

• Quickee Pushrod Kit with Gloss Black Covers

• Tappet Cuffs Lifter Guide

• 3" S&S® Blue and White Logo Decal

• Cam Plate Support Assembly

• Oil Cooled Oil Pump

• Hydraulic Precision Tappet Set

• 1 oz Torco® Engine Assembly Lube

Features

  • Oil pump and cam plate are precision-machined from billet aluminum with a blue anodized finish
  • Passage plugs are removable for servicing
  • Independent scavenge sections for the flywheel cavity and cam chest
  • Debris screens in both scavenge pickups
  • Increased oil flow capacity on both the feed and the scavenge sides
  • Adjustable pressure relief valve is adjustable with the unit installed in the engine
  • S&S premium tappets
  • Billet aluminum tappet cuffs have a hard-anodized black coating and are stronger than stock to eliminate distortion and improves tappet stability in high-lift situations
  • Made in the USA
  • Includes cam chain tensioner.
  • Will fit M8 with VVT.

Specs

Grind 475C
Intake Close 27.2° Front, 31.2° Rear
Product Name Camchest Kit
Features Black Pushrod Tubes
Intake Lift 0.475"
Intake Open 6.2° Front, 2.2° Rear
Exhaust Lift at TDC 0.208" Front, 0.170" Rear
Riding Style Street
Exhaust Close 28.5° Front, 20.2° Rear
Type Chain Drive
Application Oil Cooled
Exhaust Open 55.5° Front, 52.2° Rear
Intake Lobe Centerline 100.5° Front, 104.5° Rear
Units Kit
Intake Duration 213.5° Front, 213.5° Rear
Intake Lift at TDC 0.107" Front, 0.093" Rear
Exhaust Duration 263.9° Front, 252.5° Rear
Exhaust Lift 0.475"
Exhaust Lobe Centerline 103.5° Front, 106.0° Rear
