S&S Cycle #330-0003 - Camshaft Kit - 570C Chain Drive - Twin Cam

S&S Cycle #330-0003 - Camshaft Kit - 570C Chain Drive - Twin Cam

0925-0527

$409.95 USD
$409.95 USD
Sale Sold out

Out of stock

Splined outer drive sprocket must be purchased for '99 Twin Cam motors. S&S recommends that Andrews 4340 steel drive sprocket be used.

Features

  • Designed for 88" to 103" CID engines with compression ratios between 9:1 and 10:1

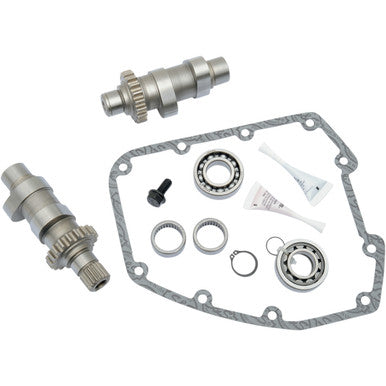

  • Kit includes camshafts, gearcover gasket, bearings, retaining ring, o-ring, thread lock and instructions
  • Strongest from 3200-3700 rpm
  • Made in the USA
  • Installer must check coil bind, valve to valve clearance and valve to piston clearance.
  • Requires high lift valve springs.
  • Camshafts for '06 Dyna and '07-'17 Twin Cam are for use with models with hydraulic tensioner chain drive system.
  • Camshafts for '00-'06 Twin Cams are use with stock splined drive gears.

Specs

Exhaust Lift at TDC 0.179"
Intake Lift 0.570"
Exhaust Open 55°
Grind 570 Series
Application Intake
Exhaust Close 20°
Intake Close 40°
Riding Style Street
Intake Duration 240°
Intake Open 20°
Intake Lobe Centerline 100°
Type Chain
Intake Lift at TDC 0.187"
Product Name Camshaft Kit
Units Kit
Exhaust Duration 255°
Exhaust Lift 0.570"
Exhaust Lobe Centerline 107.5°
