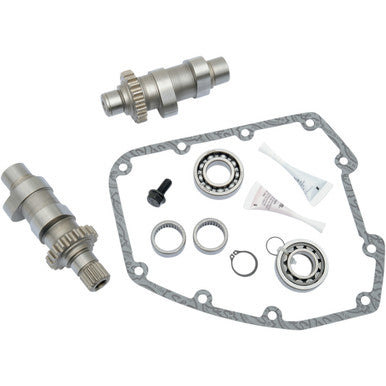

S&S Cycle #330-0004 - Camshaft Kit - 583C - Chain Drive - Twin Cam

S&S Cycle #330-0004 - Camshaft Kit - 583C - Chain Drive - Twin Cam

0925-0528

$409.95 USD
$409.95 USD
Sale Sold out

Out of stock

Not for '06 Dyna

Cams for '00-'06 Twin Cams are for use with stock splined drive gears; for installation on '99 Twin Cams requires splined outer sprocket, S&S recommends Andrews 4340 steel drive sprocket.

Features

  • Great overall cam for Softail and Dyna
  • Provides strong low-end torque and horsepower
  • Strongest from 1500-5000 rpm
  • Made in the USA
  • Installer must check coil bind, valve to valve clearance and valve to piston clearance.
  • Not recommended for engines having compression ratios greater the 10.1:1.

Specs

Exhaust Lift 0.583"
Intake Close 18°
Application Intake
Exhaust Duration 262°
Exhaust Lift at TDC 0.206"
Exhaust Lobe Centerline 107°
Riding Style Street
Intake Lift 0.583"
Type Chain
Exhaust Open 58°
Intake Open 8°
Product Name Camshaft Kit
Grind 583 Series
Intake Duration 203°
Units Kit
Exhaust Close 24°
Intake Lift at TDC 0.113"
Intake Lobe Centerline 96.5°
