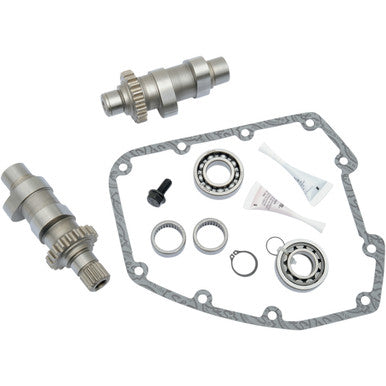

S&S Cycle #330-0016 - Camshaft Kit - 509C Chain Drive - Twin Cam
S&S Cycle #330-0016 - Camshaft Kit - 509C Chain Drive - Twin Cam
SKU:0925-0539
Regular price
$409.95 USD
Regular price
Sale price
$409.95 USD
Unit price
/
per
Out of stock
Couldn't load pickup availability
Not for '06 Dyna.
Features
- Great low and mid-range torque
- Strongest from 1000-4500 RPM
- Bolt-in cams for 88 CID engines with stock compression ratios
- 180 psi cranking compression; no need for compression releases
- Lower lift allows them to be bolted into stock 96"-106" '06 engines with stock valve springs
- Cams for '00-'06 Twin Cam are for use with stock splined drive gears; for installation on '99 Twin Cam motors you must purchase splined outer drive socket; S&S recommends that Andrews 4340 steel drive sprocket to be used.
- Made in the USA
- Installer must check coil bind, valve to valve clearance and valve to piston clearance.
Specs
| Application | Intake |
| Exhaust Duration | 237° |
| Intake Open | 18° |
| Exhaust Close | 11° |
| Exhaust Lift at TDC | 0.140" |
| Grind | 509 Series |
| Intake Lobe Centerline | 90° |
| Units | Kit |
| Intake Lift at TDC | 0.174" |
| Riding Style | Street |
| Exhaust Lobe Centerline | 107.5° |
| Exhaust Open | 46° |
| Intake Close | 18° |
| Intake Lift | 0.509" |
| Intake Duration | 216° |
| Product Name | Cam Kit |
| Exhaust Lift | 0.509" |
| Type | Chain |
