S&S Cycle #330-0328 - Camshaft Kit - 635 H.O. - Chain Drive - Twin Cam

S&S Cycle #330-0328 - Camshaft Kit - 635 H.O. - Chain Drive - Twin Cam

0925-0836

$409.95 USD
$409.95 USD
Sale Sold out

Out of stock

Cams for '06 Dyna and '07-'17 Twin Cam are for use with models with hydraulic tensioner chain drive system.

Features

  • High lift camshaft for modified engines with 106" or greater displacement and compression ratios between 10.0:1 to 11.0:1
  • Works with stock, unported heads, but S&S CNC ported heads are recommended
  • Best power from 3000-600 rpm
  • This is not a bolt in camshaft kit

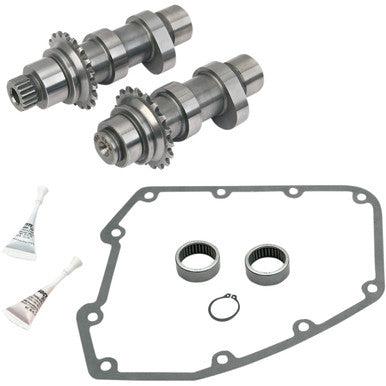

  • Kit includes camshafts, bearings, gearcover gasket, retaining ring, o-ring, thread lock and instructions
  • Made in the USA
  • Installer must check coil bind, valve to valve clearance and valve to piston clearance.

Specs

Application Exhaust
Color/Finish Raw
Grind 635HO
Exhaust Lobe Centerline 100.5°
Product Name Camshaft Kit
Exhaust Duration 276°
Intake Lobe Centerline 102°
Units Kit
Exhaust Close 37.5°
Exhaust Open 58.5°
Intake Lift 0.635"
Intake Open 19.5°
Exhaust Lift at TDC 0.284"
Exhaust Lift 0.635"
Intake Close 43.5°
Riding Style Street
Intake Duration 243°
Type Chain
