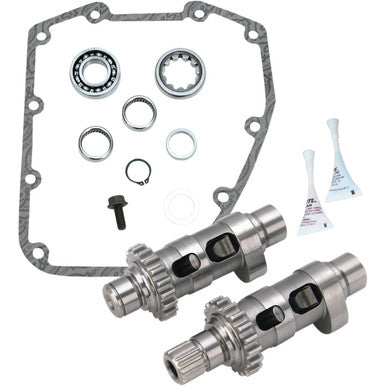

S&S Cycle #330-0445 - Camshaft Kit - Easy Start - HP103 Chain Drive - Twin Cam '99-'06 (except '06 Dyna)

S&S Cycle #330-0445 - Camshaft Kit - Easy Start - HP103 Chain Drive - Twin Cam '99-'06 (except '06 Dyna)

SKU:0925-1041

Regular price $529.95 USD
Regular price Sale price $529.95 USD
Sale Sold out

Out of stock

Camshaft Kit - Easy Start - HP103 Chain Drive - Twin Cam '99-'06 (except '06 Dyna)

Features

  • Allows for easy start by initially reducing crank compression, but once the engine starts and rpm increases, the compression release lobe is centrifugally retracted and the engine runs normally, with full compression, and without any loss in performance
  • Designed as bolt-in cams for 103" engine with stock 9.7:1 compression ratio up to 10.5:1 compression ratio
  • Power in the high rpm range, 3000 rpm - 6000 rpm
  • Includes camshafts, gearcover gasket, bearings, retaining ring, o-ring, threat lock and instructions
  • Made in the USA
  • Installer must check coil bind, valve-to-valve clearance and valve-to-piston clearance.
  • Works well with stock, unported heads, but is great for S&S CNC ported heads.
  • Not for models with OEM compression releases.

Specs

Grind HP103
Intake Lift at TDC 0.199"
Product Name Camshaft Kit
Exhaust Lift 0.575"
Riding Style Street
Application Exhaust
Intake Lift 0.575"
Exhaust Lobe Centerline 99.5°
Intake Open 20°
Type Chain
Exhaust Duration 251°
Intake Duration 249°
Exhaust Open 45°
Intake Lobe Centerline 104.500°
Model Easy Start
Units Kit
Exhaust Close 26°
Exhaust Lift at TDC 0.206"
Intake Close 49°
