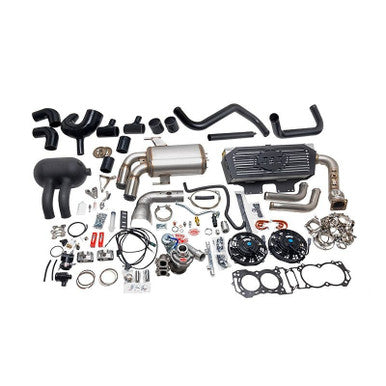

S&S Cycle 560-0331 S&S Cycle 2020+ KRX Models Turbocharger Kit (Fits Two Seater Only)

We love the KRX platform, durable chassis, well thought out suspension and a stone reliable drivetrain. The only thing missing is horsepower. The KRX is one of the few high end Side by Sides that is still running a naturally aspirated engine. We've spent eighteen months developing a viable turbo kit to correct that. Other companies bolt a turbo to the stock engine and hope for the best. We have completely re-engineered the intake system, the exhaust system, the fuel delivery system and even provide appropriate compression pistons.  Not for the faint of heart and designed specifically for racing and hard core enthusiasts, the S&S KRX Turbo Kit will deliver fifty plus percent HP gains in a durability tested and proven package.

50%+ increase in horsepower over factory
0-60 in 7s vs. 11.5s stock
Tuned for 10 psi of boost
9:1 compression ratio, forged piston kit (OEM 11.5:1)
Fits two seater only
Full size aluminum intercooler
All stainless steel air tubes with silicone couplers
Blow-off valve and 3 Bar map sensor included
Includes PV3 tuning device
Custom Rotomolded Intake Plenum
High Capacity billet fuel rail with fuel  damper
900 cc/min injectors
Includes ALL mounting hardware and brackets
Kit can be used with Kawasaki Sport roof, Kawasaki Alternator Kit and Kawasaki Spare tire rack
XTO muffler with 2.25” outlets
Flyweight rivets, compatible with stock flyweights
Breather relocation bracket
KQR™ Sport Roof mount relocation bracket
All necessary fasteners, gaskets, and hardware
“Turbo” Decals
Install instructions
Turbo, set to 10 psi of boost pressure
Forged, low compression pistons
Camshaft sprockets
Heat range 10 spark plugs
Intercooler with dual cooling fans
Intercooler fan electrical harness
High flow fuel injectors, 900 cc/min
High flow fuel filter
Large volume billet aluminum fuel rail
Rotomolded high pressure intake air plenum
2” stainless steel charge air tubes
Silicone 4 ply couplers
Billet aluminum blow off valve
Turbo oil supply and drain tubes, with oil fill adaptor
2.5” stainless steel exhaust with flex bellows and v-band connection

Fitment
